Single paper straw packaging machine and bulk paper straw packaging machine product introduction

DateTime: Visit: 682

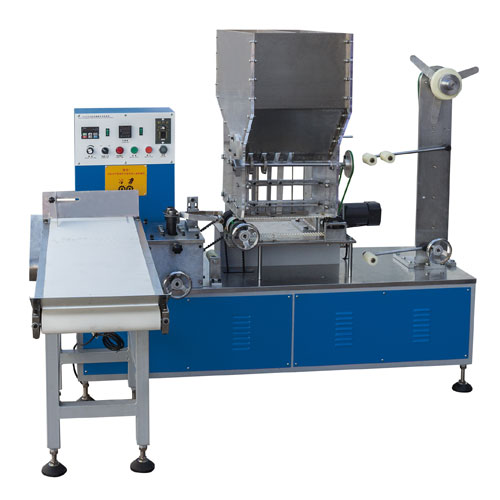

                   Single paper straw packaging machine

Single paper straw packaging machine and bulk paper straw packaging machine product introduction

The SSP031 series automatic high speed single film (paper) packaging machine is a device that automatically puts the straw into the bag. The whole machine consists of a drive motor, a transmission system, a film (paper) unwinding device, a straw device, an automatic sealing device, and a product conveying device. The machine was developed by my technicians and has high performance. The degree of automation and production speed. Filling and packaging are done once.

Features:

1. Single packaging, filling and packaging are completed at one time.

2. Automatic counting, batch alarm, convenient for secondary packaging.

3. Adjustable packaging speed.

4. Simple operation and reliable performance.

Technical Parameters

  • Drive motor: 0.75kw (inverter motor)
  • Capacity: 500~600pcs / minute
  • Packing: 3 side seal
  • Packaging material: film, paper
  • Straw specifications: diameter Φ5~Φ13mm
  • Length: 130~270 mm
  • Machine size: 1500x800x1400mm
  • Weight: 300 kg

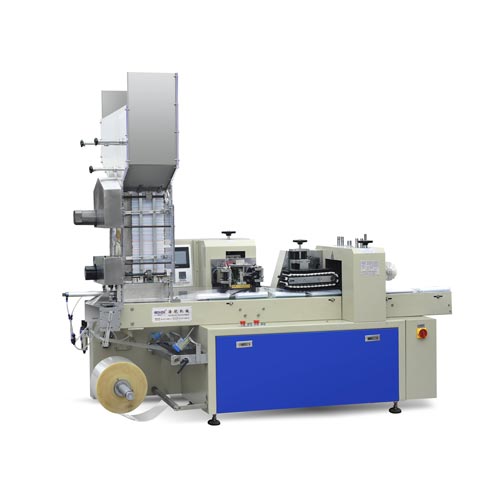

                 Bulk paper straw packaging machine

Single paper straw packaging machine and bulk paper straw packaging machine product introduction

Main performance:

1. Touch screen, easy to adjust

2. PLC controller, accurate calculation

3. Photoelectric detection, high precision

4. Automatic length detection and setting, no need to manually

5. Unlimited speed, wide range of speed and length

6. Three sides closed H (pillow seal)

Features:

1. Automatic counting, feeding and packaging.

2. Counting wheel calculation is more accurate.

3. The counting wheel can be replaced.

4. Straw counting and packaging are two separate components that can be operated separately.

Technical Parameters

  • Packaging film thickness: 18-60 zircon
  • Maximum film width: 550 mm
  • Bag length: 150-600mm
  • Packing width: 80-260mm
  • Packing height: 30-70mm
  • Packing speed (depending on packaging material): 8-28bag / minute
  • Machine size: 2800 × 1200 × 2250 mm
  • Machine weight: 850 kg
