product description

Straw Paper Packing Machine Supplier_Straw Paper Packing Machine

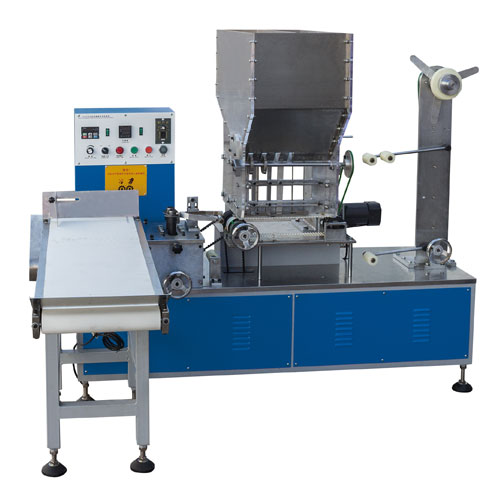

SSP031-2C Single Straw Paper Bopp Film Packing Machine With Two Color Printing

SSP031-2C series automatic high-speed single-film (paper) packaging machine is a device that automatically packs drinking straws into in 3 sides sealing bags. The whole machine is composed of a drive motor, a transmission system, a film (paper) unwinding device,a printing device(Paper printing), a straw filling device, an automatic sealing device, a product conveying device.The machine is developed by my technical staff and has a high degree of automation and production speed. Filling and packaging are completed at one time.

Characteristics:

1.Having 2 or 3 colours printing device can be chosen.
2.With automatic product counting function, product quantity may pre-set, once the pre-set value is reached, the machine will give an alarm.
3.Printing, feeding, and packing can complete in one processing.
4.Packing straw length is adjustable within a certain range.

Printing unit:

1.Bopp cant print by this machine ,you should print LOGO on bopp film ready in other machine, Then pack the straw into the bags.
2.Paper Material can be printed on machine directly.And the machine will pack straw in paper bag after printing.

Technical parameter:

Model SSP031-2C
Straw lnner Dia(mm) 5(±1) 10(±2)
  (flexible/straight straw)
Straw length(mm) 100-250(±20) Range is optional according to required of client
  100-250mm (No printing)
  150-205mm(Need printing the length differece should less 50mm)
  Different length straw need to change some spare part
Package Material Paper/BOOP film 3 sides sealing width 25mm-30mm
Packing Speed >300 packages/min
Total power(Kw) 1.5Kw (3PH/220V/60HZ)
Dimension (L×W×H)1900×1000×1600mm
Weight 400Kg



Straw Paper Packing Machine Supplier_SSP031 Packaging Machine

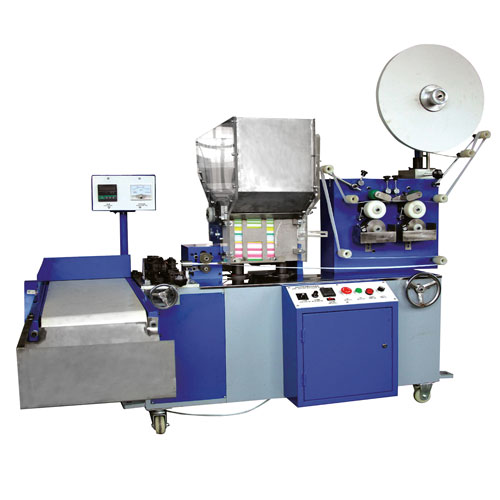

                     SSP031 Single Paper Straw Packaging Machine

SSP031 series automatic high-speed single-film (paper) packaging machine is a device that automatically packs drinking straws into bags. The whole machine is composed of a drive motor, a transmission system, a film (paper) unwinding device, a straw filling device, an automatic sealing device, a product conveying device.. The machine is developed by my technical staff and has a high degree of automation and production speed. Filling and packaging are completed at one time.

Features:

1.Single packaging, filling and packaging are completed once.
2.Automatic counting, batch alarm, convenient secondary packaging.
3.Adjustable packaging speed.
4.Easy to operate, reliable performance.

Technical Parameter:

Drive motor 0.75kw(Inverter motor)
Capacity 500~600pcs/min
Packing mode 3side sealing
Packing material Film,Paper
Straw specification Diameter Φ5~Φ13mm
  Length 130~270mm
Others pecificaton(Different to standard)can customsize
Machine size 1500x800x1400mm
Weight 300kg
