Company Profile

Wenzhou Changs Machinery Co.Ltd is one of the first company specialized in manufacturing printing machines, packing machines,paper straw machine,plastic machine and paper converting machines,has owned export and import license since 2004.

To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.

Changs Machinery Co.Ltd is located in Wenzhou which is a coast city, it is near to Shanghai or Ningbo port. the convenient transportation reduces transport cost and shortened machine’s delivery time aswell.

Tel: +86-577-86009991 / 86059991

Fax: +86-577-86066075


product description

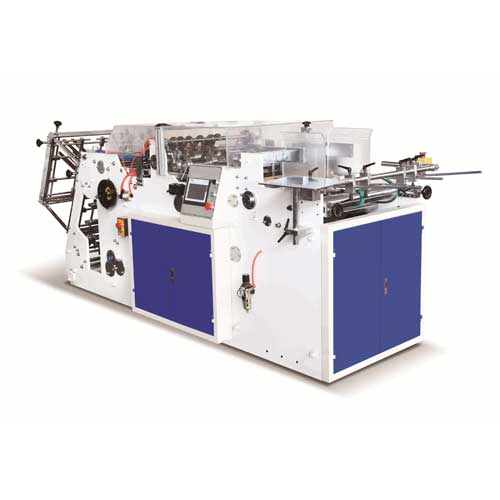

SCF-H Full Automatic Carton Erecting Forming Machine

Carton Machine Supplier_Carton Erecting Forming Machine

Feature:

SCF-H full automatic carton erecting forming machine is an ideal equipment to produce paper box,such as hamburger box,chips box,fried chicken box,kids meal box,etc.
With firm structure,high quality,low noise and high efficiency. With paper feeding unit,adjust unit,gluing unit,forming unit,finished products collecting and counting unit。

Technical parameter:

Model SCF-H
Produce speed 60-160pcs/min(different paper box shapes the speed will be different)
Raw material 20-600gsm card board/corrugated paper(Max thickness:1.50mm)
Total Power 380V/50HZ/5.5KW
Products size Box length:100-450mm degree:5-40
  Box width:100-580mm Sealing Height:15-200mm
Packing size 2950x1320x1500mm(LXWXH)
Mahcine weight 2200kg

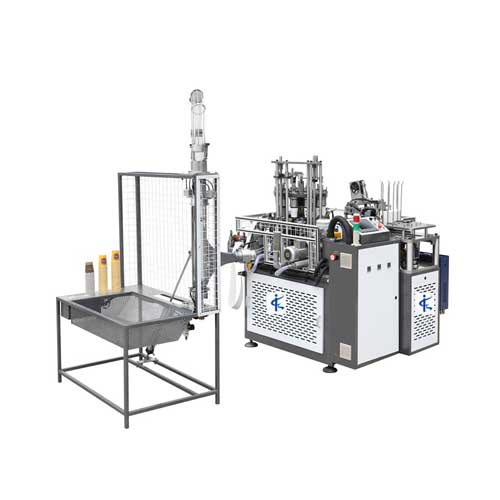

SCF-22D,22S Automatic Paper cup forming machine for RFQ

Carton Machine Supplier_Paper cup forming machine for RFQ

Features:

1.The whole steel plate fuselage、interlayer paper feeding design and the style of oil poured  lubrication system is  Ensured the equipment long-term normal and Stable Work;
2.Short distance double vertical axis combine advanced and high-precision cylinder open type cam drive make every stations high-speed worked accurate without mistake;
3.Single wrap the leaf groove cam structure combine seesaw roof bar design can make the high-speed paper feeding go to the place accurately;
4.Exquisite original creation ¢490mm mould turn plate design make the equipment work load more light and the speed to be more fast;
5.Scientific and reasonable mechanical is fit Itinerary design can using in premise of exchange mould can make the products producing range 6oz-22oz ;paper thickness 170g-350g .

Maintenance:

1.The equipment basic fixed point is focus on table-board,can adjust and change the parts of table-board directly ,it's convenient maintain and operate;
2.The equipment shape design small volume,small floor space,greatly save the client's factory using space;20 cabinet can install 4 cabinet can efficient decrease client transport fees;

Technical Parameters:

Model SCF-22D SCF-22S
Cup size 6-22oz 6-22oz
Raw material 160-350g/m2 160-350g/m2
  (single side PE coated paper) (Double side PE coated paper and single side PE coated paper)
Top mouth diameter φ60mm-φ90mm φ60mm-φ90mm
Bottom diameter φ40mm-φ70mm φ40mm-φ70mm
Height 60mm-180mm 60mm-180mm
Bottom depth Depth5mm-10mm Depth 5mm-10mm
Capacity 60-90pcs/min 60-90pcs/min
Main motor power 1.5kw 1.5kw
Energy consumption 6-6.5kw/h 6-6.5kw/h
Total power 11.5kw 11.5kw
Air source 0.4m³/min 0.5-0.8Mpa 0.4m³/min 0.5-0.8Mpa
Weight 2200Kg 2200Kg
