Wenzhou Changs Machinery Co.Ltd is one of the first company specialized in manufacturing printing machines, packing machines,paper straw machine,plastic machine and paper converting machines,has owned export and import license since 2004.

To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.

To serve buyers the best machine and ensure our machines are with reliability quality, our factory employed skilled engineers and using advanced technology equipment, the raw material and components are carefully selected. meanwhile, we have built closely cooperative relationship with domestic colleges, universities and R&D institutes. Further on we have established a solid relationship with reliable equipment suppliers and our service team are got rich experience in the industry.

Changs Machinery Co.Ltd is located in Wenzhou which is a coast city, it is near to Shanghai or Ningbo port. the convenient transportation reduces transport cost and shortened machine’s delivery time aswell.

Tel: +86-577-86009991 / 86059991

Fax: +86-577-86066075


product description

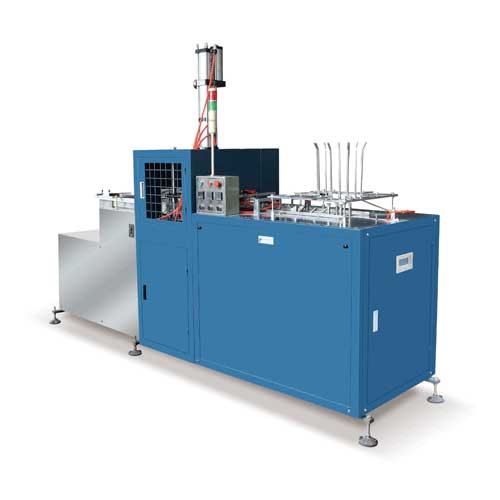

                         SCB-PTZ Automatic Paper Plate Machine

Paper Plate Machine supplier_Automatic Paper Plate Machine

Feature:

The SCB-PTZ Series high speed automatic paper plates machine is developed indenpently according to the market demand. With automatic pneumatic paper suction,heating forming,automatic ouput and constant temperature control,Automatic counting,overlaping and other functions can directly support the production line.Its the Ideal equipment for the circlar paper plates, square paper plates and special shape paper plate. The SCB-PTZ paper plate machine compare with the traditional automatic paper plate machine, its design according to the motion principle of machine,has higher production, more stable performance and more safe Operation ,more convenient maintenance and more humanized structure design.Automatic high speed paper plate machine adopt machanical cam, the maximum pressure can reach 4tons,its has the advantages of faster,more environment friendly and more energy save. This machine is widely used in the production of the paper plate. It can produce different size and shape plate
through change the mould.

Technical parameter:

Model SCB-PTZ
Plate size 4-11inch(Other shape can customized)
Raw material 180-800gsm(Raw paper white board paper,Aluminum foil paper)
Produce speed 30-45pcs/min(1 station)
Power supply 380V/50HZ
Total power 3KW
Machine weight 600kg
Machine size 1700x700x1900mm(LxWxH)
Air source Work pressure 0.4MPa,work air volume 0.2 Cubic meters/minute
others We can customized paper plate in any size and any shape

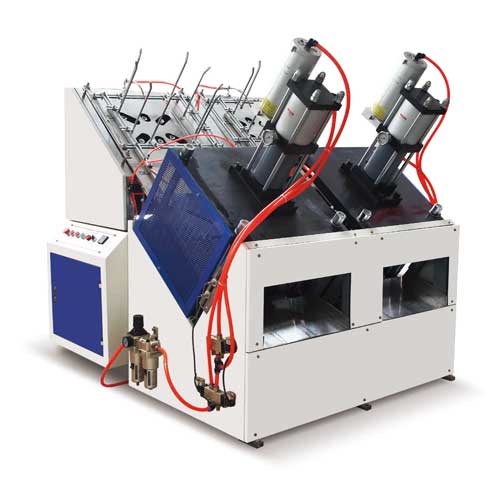

              SCF-500 Middle Speed Automatic Paper Plates Machine

Paper Plate Machine supplier_Middle Speed Automatic Paper Plates Machine

SCF-500 Model middle speed automatic paper plate forming machine was developed and reserched in order to meet the market requirement.Its has integrated the pneumatic and the mechanic technologes,which makes its has the function of the faster working speed,higher safety performance ,safer operation and easier maintance than the conventional one SCF-500 paper plate machine.
Adopts high efficent pressure air cylinder , so the max pressure can reach to 15 Tons ,compared with the oil pressure one,its has the advantage of high speed, environment protection and humanish design standard,SCF-500 paper plate machine has two working station , each station install one set of the mould and each station has seperately PLC digital control
Its is widely applied to make paper plate in round(rectangle,square,circular, orerregular) shape.
Machine speed changes against the material(paper) thickenss and the plate size.

Technical Parameter:

Model SCF-500
Produce speed 50-70pcs/min
Raw material 100-1000gsm(raw paper,white board paper,aluminium foil and other)
Total power 220V/50HZ
Plate size Diameter:8-15 inches(can be customized)
Packing size 1700x1650x1900mm(LXWXH)
Machine weight 1000kg
Airsources Workp ressure1.2Mpa
  Work volume1.5Cubic meter/min
