Paper Plates Machine Supplier

DateTime: Visit: 784

Company Profile

Wenzhou Changs Machinery Co.Ltd is one of the first company specialized in manufacturing printing machines, packing machines,paper straw machine,plastic machine and paper converting machines,has owned export and import license since 2004.

To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.

Tel: +86-577-86009991 / 86059991

Fax: +86-577-86066075



Product Description

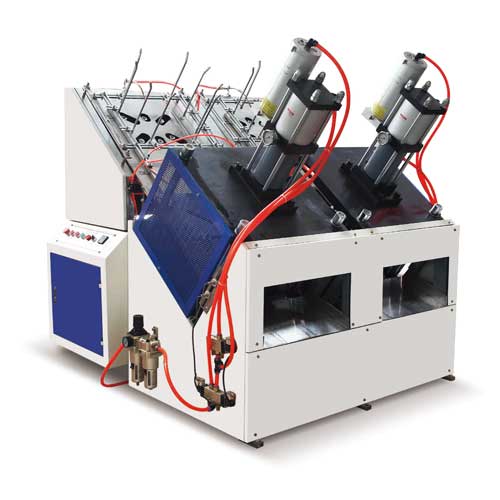

SCF-500 Middle Speed Automatic Paper Plates Machine

Paper Plates Machine Supplier_Automatic Paper Plates Machine

SCF-500 Model middle speed automatic paper plate forming machine was developed and reserched in order to meet the market requirement.Its has integrated the pneumatic and the mechanic technologes,which makes its has the function of the faster working speed,higher safety performance ,safer operation and easier maintance than the conventional one SCF-500 paper plate machine.

Adopts high efficent pressure air cylinder , so the max pressure can reach to 15 Tons ,compared with the oil pressure one,its has the advantage of high speed, environment protection and humanish design standard,SCF-500 paper plate machine has two working station , each station install one set of the mould and each station has seperately PLC digital control

Its is widely applied to make paper plate in round(rectangle,square,circular, orerregular) shape.

Machine speed changes against the material(paper) thickenss and the plate size.

Technical Parameter:

Model SCF-500
Produce speed 50-70pcs/min
Raw material 100-1000gsm(raw paper,white board paper,aluminium foil and other)
Total power 220V/50HZ
Plate size Diameter:8-15 inches(can be customized)
Packing size 1700x1650x1900mm(LXWXH)
Machine weight 1000kg
Airsources Workp ressure1.2Mpa
  Work volume1.5Cubic meter/min
Pressure cylinder The work pressure is 0.9Mpa,the flow rate is1.2 Cubic meter/min cylinder stroke150M

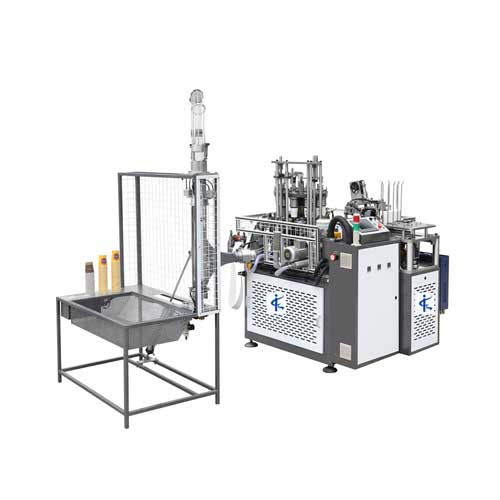

SCF-22D,22S Automatic Paper cup forming machine for RFQ

Paper Plates Machine Supplier_Automatic Paper cup forming machine

Features:

1.The whole steel plate fuselage、interlayer paper feeding design and the style of oil poured  lubrication system is  Ensured the equipment long-term normal and Stable Work;
2.Short distance double vertical axis combine advanced and high-precision cylinder open type cam drive make every stations high-speed worked accurate without mistake;
3.Single wrap the leaf groove cam structure combine seesaw roof bar design can make the high-speed paper feeding go to the place accurately;
4.Exquisite original creation ¢490mm mould turn plate design make the equipment work load more light and the speed to be more fast;
5.Scientific and reasonable mechanical is fit Itinerary design can using in premise of exchange mould can make the products producing range 6oz-22oz ;paper thickness 170g-350g .

Technical Parameters:

Model SCF-22D SCF-22S
Cup size 6-22oz 6-22oz
Raw material 160-350g/m2 160-350g/m2
  (single side PE coated paper) (Double side PE coated paper and single side PE coated paper)
Top mouth diameter φ60mm-φ90mm φ60mm-φ90mm
Bottom diameter φ40mm-φ70mm φ40mm-φ70mm
Height 60mm-180mm 60mm-180mm
Bottom depth Depth5mm-10mm Depth 5mm-10mm
Capacity 60-90pcs/min 60-90pcs/min
Main motor power 1.5kw 1.5kw
Energy consumption 6-6.5kw/h 6-6.5kw/h
Total power 11.5kw 11.5kw
Air source 0.4m³/min 0.5-0.8Mpa 0.4m³/min 0.5-0.8Mpa
Weight 2200Kg 2200Kg
Dimension(L*W*H) 1750mm*1350mm*1850mm 1750mm*1350mm*1850mm
Ice Cream Cup(130ml) 75 60

Maintenance:

  • The equipment basic fixed point is focus on table-board,can adjust and change the parts of table-board directly ,it's convenient maintain and operate.
  • The equipment shape design small volume,small floor space,greatly save the client's factory using space;20 cabinet can install 4 cabinet can efficient decrease client transport fees.
