Paper Bowl Machine Manufacturer

DateTime: Visit: 713

Company Profile

Wenzhou Changs Machinery Co.Ltd is one of the first company specialized in manufacturing printing machines, packing machines,paper straw machine,plastic machine and paper converting machines,has owned export and import license since 2004.

To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.

To serve buyers the best machine and ensure our machines are with reliability quality, our factory employed skilled engineers and using advanced technology equipment, the raw material and components are carefully selected. meanwhile, we have built closely cooperative relationship with domestic colleges, universities and R&D institutes. Further on we have established a solid relationship with reliable equipment suppliers and our service team are got rich experience in the industry.

Tel: +86-577-86009991 / 86059991

Fax: +86-577-86066075



product description

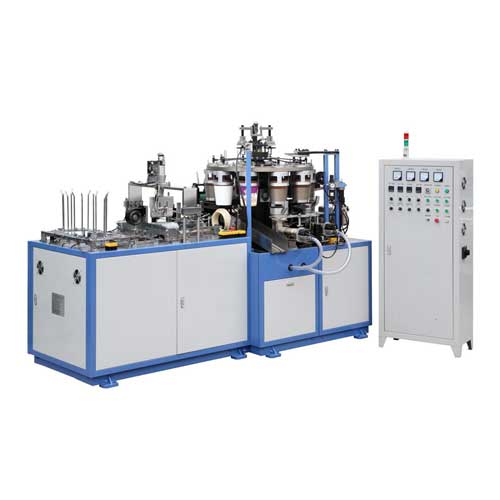

                       SCF-60D Middle Speed Paper Bowl Machine

Paper Bowl Machine Manufacturer_Paper Bowl Machine

SCF-60D Automatic paper bowl forming machine is based on ordinary paper cup machine. Through improvement, the mechanical strength and stability of the whole machine are greatly improved. This model has continuous processes such as oil filling,die cutting bottom, heating, knurling, crimping, and blowing out. It can produce single and double-sided coated needle bowls, ice cream and other  containers. This machine adopts the characteristics of air blowing device, high-speed precision intermittent dividing machine, accurate and reliable, and is the first choice for the replacement of paper bowl machine production industry.

Technical parameter:

Model SCF-60D
Bowl size 40-120oz
Capacity 30-35pcs/mim
Top diameter 120-220mm
Bottle diameter 90-180mm
Height 100-200mm
Motor power 2.2kw
Heating power 8kw
Total power 15kw
Air pressure 0.4m³/min 0.5MPa
Raw material 350-420g/㎡(single or double PE coated paper)
Weight 4500kg
Overall dimension 3300×2000×2200mm
  940×600×1900mm

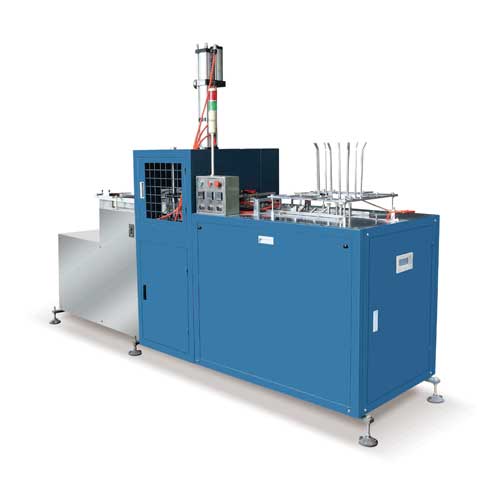

                         SCB-PTZ Automatic Paper Plate Machine

Paper Bowl Machine Manufacturer_Automatic Paper Plate Machine

Feature:

The SCB-PTZ Series high speed automatic paper plates machine is developed indenpently according to the market demand. With automatic pneumatic paper suction,heating forming,automatic ouput and constant temperature control,Automatic counting,overlaping and other functions can directly support the production line.Its the Ideal equipment for the circlar paper plates, square paper plates and special shape paper plate. The SCB-PTZ paper plate machine compare with the traditional automatic paper plate machine, its design according to the motion principle of machine,has higher production, more stable performance and more safe Operation ,more convenient maintenance and more humanized structure design.Automatic high speed paper plate machine adopt machanical cam, the maximum pressure can reach 4tons,its has the advantages of faster,more environment friendly and more energy save. This machine is widely used in the production of the paper plate. It can produce different size and shape plate through change the mould.

Technical parameter:

Model SCB-PTZ
Plate size 4-11inch(Other shape can customized)
Raw material 180-800gsm(Raw paper white board paper,Aluminum foil paper)
Produce speed 30-45pcs/min(1 station)
Power supply 380V/50HZ
Total power 3KW
Machine weight 600kg
Machine size 1700x700x1900mm(LxWxH)
Air source Work pressure 0.4MPa,work air volume 0.2 Cubic meters/minute
others We can customized paper plate in any size and any shape
