SSP031 Single Paper Straw Packaging Machine (Without Printing Unit)

pdf
Description

SSP031 series automatic high-speed single-film (paper) packaging machine is a device that automatically packs drinking straws into bags. The whole machine is composed of a drive motor, a transmission system, a film (paper) unwinding device, a straw filling device, an automatic sealing device, a product conveying device.. The machine is developed by my technical staff and has a high degree of automation and production speed. Filling and packaging are completed at one time.

Features:
1.Single packaging, filling and packaging are completed once.
2.Automatic counting, batch alarm, convenient secondary packaging.
3.Adjustable packaging speed.
4.Easy to operate, reliable performance.

Technical Parameter:

Drive motor 0.75kw(Inverter motor)
Capacity 500~600pcs/min
Packing mode 3side sealing
Packing material Film,Paper
Straw specification Diameter Φ5~Φ13mm
Length 130~270mm
Others pecificaton(Different to standard)can customsize
Machine size 1500x800x1400mm
Weight 300kg

Electric component list:

Name Specification Brand
Motor 0.75kw CHINA
Inverter 0.75kw Delta,Taiwan
AC contactor - Schneider,France
Circuit Breaker, - Schneider France、
Knob Button Switch   DELIXI china
Thermostat - Huibang,china
Solid state contactor - Meiger,Taiwan
Bearing - NSKJapan、Haerbin China
Cylinder electromagnetic valve - AirTak,Taiwan

Spare part with machine:

NO Name Specification QTY Remark
1 Copper fork - 20pcs Total:1Set
2 Blade SKS-80x9x0.4mm 2Box
3 Blade clamp - 1PC
4 Knife back - 1PC
5 Discharge port stopper - 1PC
6 Rewind board - 1PC
7 Heating bar - 1PC

TOOL:

NO Name Specification QTY Remark
1 Tool box - 1PC Total:1Set
2 Allen wrench 3-10 1PC
3 Double head wrench 8-22 1PC
4 Adjustabl ewrench 200mm 1PC
5 Phillips screwdriver 200mm 1PC
6 Slotted screwdriver 200mm 1PC
7 Long nose pliers 160mm 1PC

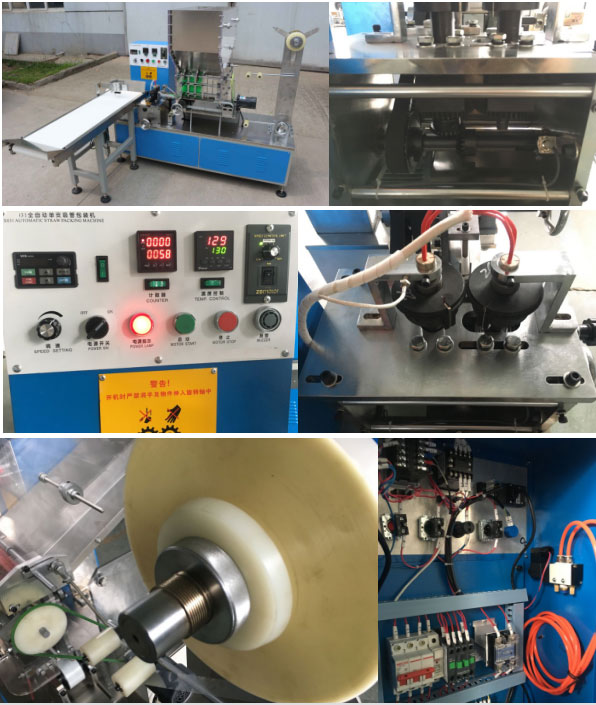

Machine photo:

Packing products photo:
