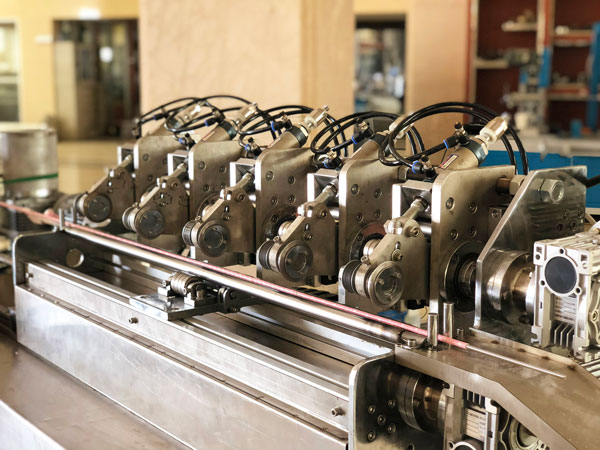

SPS-512 High Speed Paper Straw Machine

High Speed Paper Straw Machine

Paper Straw Machine

High Speed Paper Drinking Straw Making Machine APPLICATION:

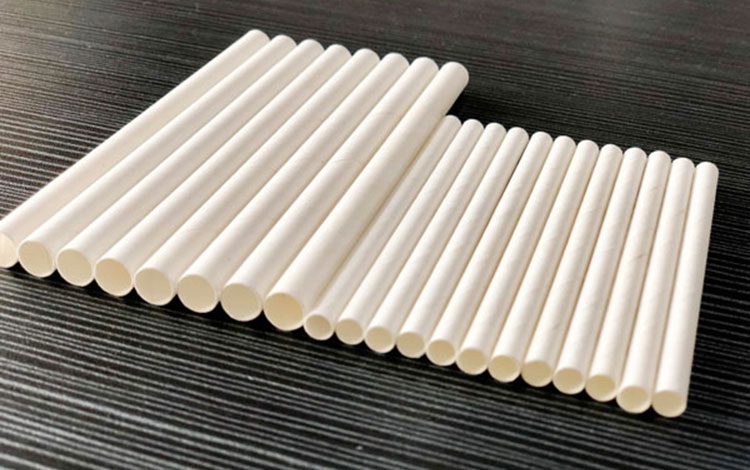

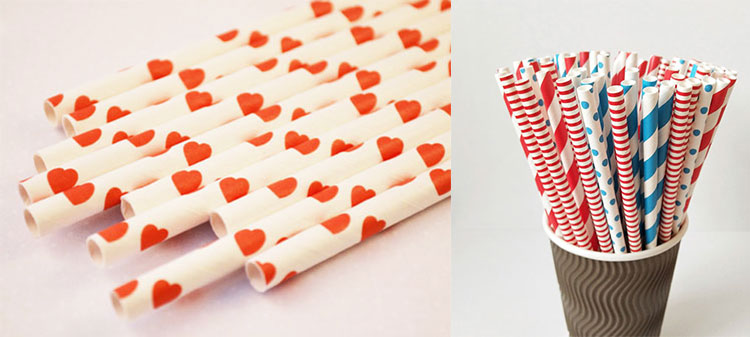

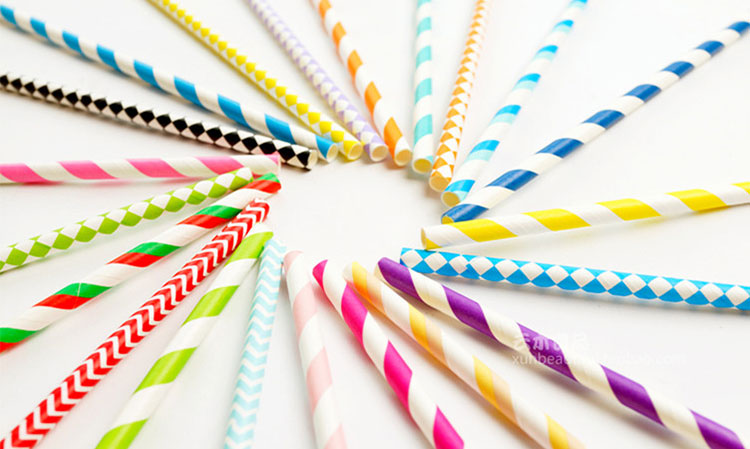

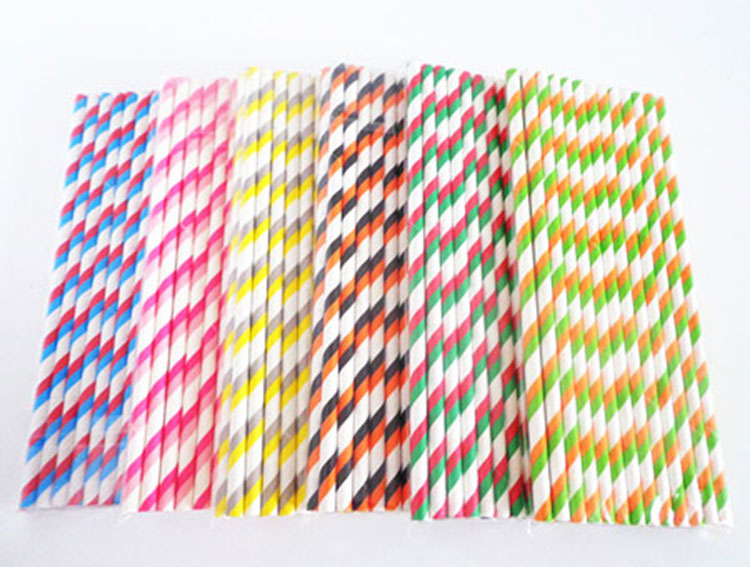

Suitable for small diameter (5-12 mm) Paper straws, ball refill, yarn inner tube, etc.

FEATURE:
1.Numerical control servo cutter device, high precision cutting;
2.Automatically cut, automatically fall pipe, automatically change speed and revert;
3.Computer PLC control, touch screen man-machine interface operation;
4.Round knife cutting, incision more smooth, performance more stable;
5.With online multi-cut blades, no need secondary cutting, save labor and time.

Technical parameter		Control system
Number of roller	3ply	Motor power	3KW
Straw diameter	5-12mm	Reducer model	RV110-1:15
Straw thickness	0.5-1mm	Transmission reducer	RV30/40-1：7.5
Core mould fixed way	Flange chuck	Servomotor	Dongyuan，taiwan
winding head	2	Servodriver	Dongyuan，taiwan
Cutting control	Servo synchronism multiblade cutting	PLC Controller	DELTA DVP28SV
Cutting mode	6 knife	Touchscreen	MCGS TPC7062
Gluing way	Single side	Inverter	Yaskawa 3.7KW
Operator	1-2person	Contactor	CHNT
Winding speed	30-45M/min	Signal part	SHHG
Speed control	Transducer	Pneumatic part	AIRTAC
Feeding material	Automatic	Fix length way	Optoelectronic switch /Encode
Voltage	220V3P/60Hz	Part of machine

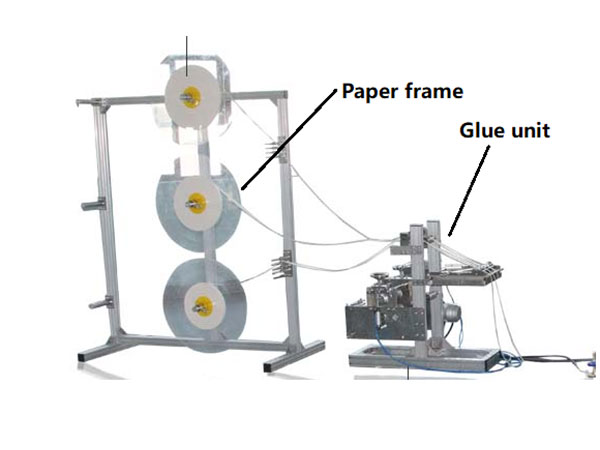

Air pressure	0.6Mpa	Paper frame	3ply
Swing angle adjustment	Automatic	Glueframe	3ply
Weight&size		Winding belt	5pcs
Machine size	300010001450	Winding core stick	2pcs
Work Area space	6000*6000mm	Cutting knife	6pcs
Machine weight	1200KG	Toolbox	1set
