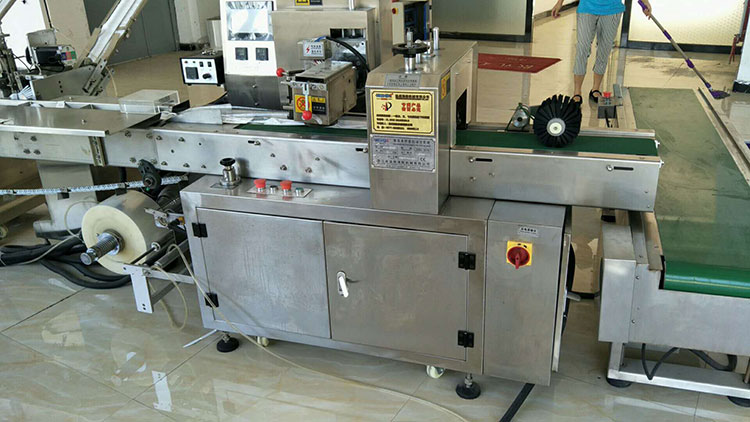

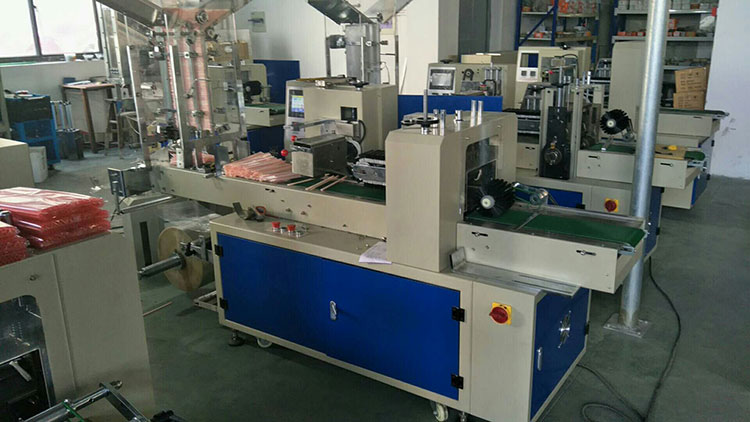

SBP-6000 Bulk Paper Straw Packing Machine

pdf
Description

QUOTATION

NO MODEL/NAME QTY PRICE FOB USD TOTAL
1 SBP-6000 Bulk Paper Straw Packing Machine 1 14500$
OPPTIONAL STAINLESS STEEL 1SET 1200$

OTHERS:
1.SPECIFICATION: PLEASE CHECK THE ATTACHMENT.
2.PAYMENT: T/T DEPOSIT 30%, BALANCE 70% BEFORE SHIPMENT.
3.DELIVERY: 30 WORKING DAYS AFTER GOT THE DEPOSIT.
4.INCONTERM S:FOB NINGBO
5.PACKAGE:PLYWOOD CASE
6.WARRANTY TERMS:ONE YEAR FREE WARRANTY

ATTACHMENT NO: SBP-6000
SBP-6000 Bulk Paper Straw Packing Machine
Main performance:
1. Touch screen, convenient adjustment
2. PLC controller, accurate calculation
3. Photoelectric detection, great precision
4. The length is automatic detected and set, without manual
5. Unlimited speed, the scope of speed and length are very wide range
6. Trilateral closure H (pillow sealing)

Features:
1. Automatic counting, feeding and packing.
2. Calculated by counting wheel, more accurate
3. Counting wheel can be replace
4. Straws counting and packaging is the two independent parts, can be operated alone.

Specification:

Model SBP-6000
Packaging film thickness 18-60 Mircon
Max.film width 550mm
Bag length 150-600mm
Packaging width 80-260mm
Packaging height 30-70mm
Packing speed(Depend on packing material) 8-28bag/min
Machine dimension 2800×1200×2250mm
Machine weight 850kg

Package:
Plywood case
Payment:
T/T 30% deposit before production and 70% balance before shipment.
.Delivery time:
30 WORKING DAYS AFTER GOT THE DEPOSIT
Configuration

NO Appliance Brand
1 Touch Screen WEINVIEM from Taiwan
2 Frequency converter SUNFAR from China
3 PL Ccontrol unit PANASONIC from Japan
4 Motor DASU from China
5 Servo Motor DORNA from China
6 Speed Motor HOULE from China
7 Temperature controller YKEYANG from China
8 Power switch DELIXI from China
9 Photo electric detection sensor JULONG/CNHENW from China
10 Rotay encoder CHBG from China
11 Proximity sensor OMRON
12 Air cylinder ZHUOYI from China
13 Electromagnetic valve ZHUOYI from China
14 Solid state relay LONGLIVE from China

Standard Accessories

NO Name quantity
1 Electric heating tube 2units
2 Thermocouple wire 2units
3 Plastic brush 5units
4 brasswire brush 1units
5 spanner 1set
6 screw-driver 1set
7 Manual 1set

Configuration

NO Appliance Brand
1 Touch Screen WEINVIEM from Taiwan
2 Frequency converter SUNFAR from China
3 PL Ccontrol unit PANASONIC from Japan
4 Motor DASU from China
5 Servo Motor DORNA from China
6 Speed Motor HOULE from China
7 Temperature controller YKEYANG from China
8 Power switch DELIXI from China
9 Photo electric detection sensor JULONG/CNHENW from China
10 Rotay encoder CHBG from China
11 Proximity sensor OMRON
12 Air cylinder ZHUOYI from China
13 Electromagnetic valve ZHUOYI from China
14 Solid state relay LONGLIVE from China

UStandard Accessories

NO Name quantity
1 Electric heating tube 2units
2 Thermocouple wire 2units
3 Plastic brush 5units
4 brasswire brush 1units
5 spanner 1set
6 screw-driver 1set
7 Manual 1set
