SCF-60D Middle Speed Paper Bowl Machine


SCF-60D Automatic paper bowl forming machine is based on ordinary paper cup machine. Through improvement, the mechanical strength and stability of the whole machine are greatly improved. This model has continuous processes such as oil filling,die cutting bottom, heating, knurling, crimping, and blowing out. It can produce single and double-sided coated needle bowls, ice cream and other  containers. This machine adopts the characteristics of air blowing device, high-speed precision intermittent dividing machine, accurate and reliable, and is the first choice for the replacement of paper bowl machine production industry.

Technical parameter:

Model SCF-60D
Bowl size 40-120oz
Capacity 30-35pcs/mim
Top diameter 120-220mm
Bottle diameter 90-180mm
Height 100-200mm
Motor power 2.2kw
Heating power 8kw
Total power 15kw
Air pressure 0.4m³/min 0.5MPa
Raw material 350-420g/㎡(single or double PE coated paper)
Weight 4500kg
Overall dimension 3300×2000×2200mm

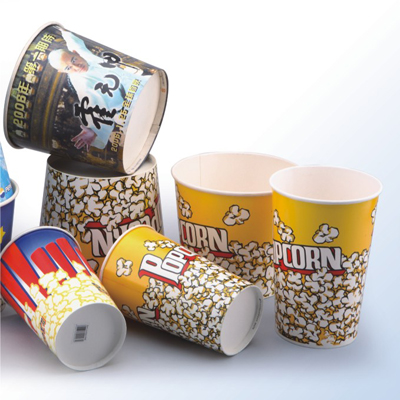

Bowl sample :
