SCF-22D,22S Automatic Paper cup forming machine for RFQ

pdf
Description

Features:
1.The whole steel plate fuselage、interlayer paper feeding design and the style of oil poured  lubrication system is  Ensured the equipment long-term normal and Stable Work;
2.Short distance double vertical axis combine advanced and high-precision cylinder open type cam drive make every stations high-speed worked accurate without mistake;
3.Single wrap the leaf groove cam structure combine seesaw roof bar design can make the high-speed paper feeding go to the place accurately;
4.Exquisite original creation ¢490mm mould turn plate design make the equipment work load more light and the speed to be more fast;
5.Scientific and reasonable mechanical is fit Itinerary design can using in premise of exchange mould can make the products producing range 6oz-22oz ;paper thickness 170g-350g .

Maintenance:
1.The equipment basic fixed point is focus on table-board,can adjust and change the parts of table-board directly ,it's convenient maintain and operate;
2.The equipment shape design small volume,small floor space,greatly save the client's factory using space;20 cabinet can install 4 cabinet can efficient decrease client transport fees;

Technical Parameters:

Model SCF-22D SCF-22S
Cup size 6-22oz 6-22oz
Raw material 160-350g/m2
(single side PE coated paper)
160-350g/m2
(Double side PE coated paper and single side PE coated paper)

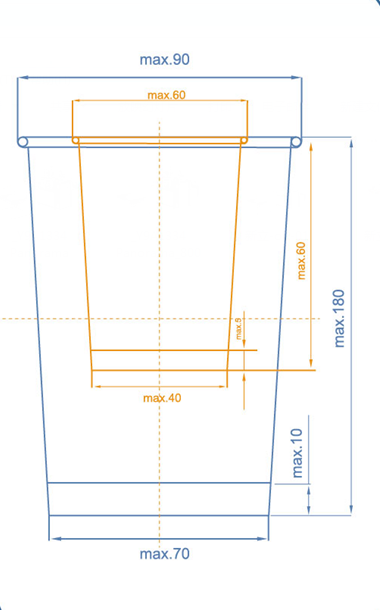

Top mouth diameter φ60mm-φ90mm φ60mm-φ90mm
Bottom diameter φ40mm-φ70mm φ40mm-φ70mm
Height 60mm-180mm 60mm-180mm
Bottom depth Depth5mm-10mm Depth 5mm-10mm
Capacity 60-90pcs/min 60-90pcs/min
Main motor power 1.5kw 1.5kw
Energy consumption 6-6.5kw/h 6-6.5kw/h
Total power 11.5kw 11.5kw
Air source 0.4m³/min 0.5-0.8Mpa 0.4m³/min 0.5-0.8Mpa
Weight 2200Kg 2200Kg
Dimension(L*W*H) 1750mm*1350mm*1850mm 1750mm*1350mm*1850mm
