SCF-H Full Automatic Carton Erecting Forming Machine

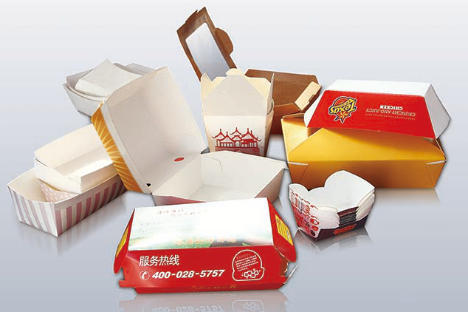

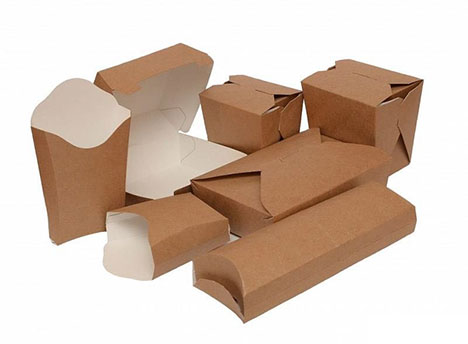

SCF-H full automatic carton erecting forming machine is an ideal equipment to produce paper box,such as hamburger box,chips box,fried chicken box,kids meal box,etc.
With firm structure,high quality,low noise and high efficiency. With paper feeding unit,adjust unit,gluing unit,forming unit,finished products collecting and counting unit。

Technical parameter:

Model SCF-H
Produce speed 60-160pcs/min(different paper box shapes the speed will be different)
Raw material 20-600gsm card board/corrugated paper(Max thickness:1.50mm)
Total Power 380V/50HZ/5.5KW
Products size Box length:100-450mm degree:5-40
Box width:100-580mm Sealing Height:15-200mm
Packing size 2950x1320x1500mm(LXWXH)
Mahcine weight 2200kg
